NN-based Recommender system

Author

차상진

Published

May 24, 2024

1. Imports

import torch
import pandas as pd
import matplotlib.pyplot as plt

2. torch.nn.Embedding

A. 임베딩 레이어

`-` motive : torch.nn.functional.one_hot + torch.nn.Linear를 매번 쓰는 건 너무 귀찮은데??
torch.manual_seed(43052)
#x = ['옥순','영숙','하니','옥순','영숙']
x = torch.tensor([0,1,2,0,1])
E = torch.nn.functional.one_hot(x).float()
linr = torch.nn.Linear(3,1,bias=False)
lf = linr(E)
lf
tensor([[-0.2002],
        [-0.4890],
        [ 0.2081],
        [-0.2002],
        [-0.4890]], grad_fn=<MmBackward0>)
linr.weight
Parameter containing:
tensor([[-0.2002, -0.4890,  0.2081]], requires_grad=True)
torch.concat([linr(E) , E @ linr.weight.T],axis=1)
tensor([[-0.2002, -0.2002],
        [-0.4890, -0.4890],
        [ 0.2081,  0.2081],
        [-0.2002, -0.2002],
        [-0.4890, -0.4890]], grad_fn=<CatBackward0>)

- torch.nn.functional.one_hot + torch.nn.Linear를 함께 처리해주는 레이어 torch.nn.Embedding 존재

torch.manual_seed(43052)
ebdd = torch.nn.Embedding(3,1)
ebdd.weight.data = linr.weight.data.T
ebdd(x)
tensor([[-0.2002],
        [-0.4890],
        [ 0.2081],
        [-0.2002],
        [-0.4890]], grad_fn=<EmbeddingBackward0>)

? 굳이 one_hot인코딩을 해야하나? 안하고 바로 linear하면 안되나?

- linear.weight가 각각의 데이터에 개별마다 서로 다른 weight가 적용되어야하는데 one_hot인코딩을 하지 않으면 개별적으로 적용되지 않음.

B. MF-based 추천시스템 재설계

df_view = pd.read_csv('https://raw.githubusercontent.com/guebin/DL2024/main/posts/solo.csv',index_col=0)
df_view
영식(IN) 영철(IN) 영호(IS) 광수(IS) 상철(EN) 영수(EN) 규빈(ES) 다호(ES)
옥순(IN) NaN 4.02 3.45 3.42 0.84 1.12 0.43 0.49
영자(IN) 3.93 3.99 3.63 3.43 0.98 0.96 0.52 NaN
정숙(IS) 3.52 3.42 4.05 4.06 0.39 NaN 0.93 0.99
영숙(IS) 3.43 3.57 NaN 3.95 0.56 0.52 0.89 0.89
순자(EN) 1.12 NaN 0.59 0.43 4.01 4.16 3.52 3.38
현숙(EN) 0.94 1.05 0.32 0.45 4.02 3.78 NaN 3.54
서연(ES) 0.51 0.56 0.88 0.89 3.50 3.64 4.04 4.10
보람(ES) 0.48 0.51 1.03 NaN 3.52 4.00 3.82 NaN
하니(I) 4.85 4.82 NaN 4.98 4.53 4.39 4.45 4.52
df_train = df_view.stack().reset_index().set_axis(['W','M','y'],axis=1)
w = {'옥순(IN)':0, '영자(IN)':1, '정숙(IS)':2, '영숙(IS)':3, '순자(EN)':4, '현숙(EN)':5, '서연(ES)':6, '보람(ES)':7, '하니(I)':8}
m = {'영식(IN)':0, '영철(IN)':1, '영호(IS)':2, '광수(IS)':3, '상철(EN)':4, '영수(EN)':5, '규빈(ES)':6, '다호(ES)':7}
X1 = torch.tensor(df_train['W'].map(w)) # length-n int vector
X2 = torch.tensor(df_train['M'].map(m)) # length-n int vector
y = torch.tensor(df_train['y']).float().reshape(-1,1) # (n,1) float vector

임베딩레이어를 활용하여 MF-based 추천시스템을 설계하라.

torch.manual_seed(43052)
ebdd1 = torch.nn.Embedding(9,2)
b1 = torch.nn.Embedding(9,1)
ebdd2 = torch.nn.Embedding(8,2)
b2 = torch.nn.Embedding(8,1)
sig = torch.nn.Sigmoid()
loss_fn = torch.nn.MSELoss()
params = list(ebdd1.parameters()) + list(b1.parameters()) + list(ebdd2.parameters()) + list(b2.parameters())
optimizr = torch.optim.Adam(params , lr=0.1)
#--#
for epoc in range(100):
    # 1
    W_features = ebdd1(X1)
    W_bias = b1(X1)
    M_features = ebdd2(X2)
    M_bias = b2(X2)
    score = (W_features * M_features).sum(axis=1).reshape(-1,1) + W_bias + M_bias
    yhat = sig(score) * 5
    # 2
    loss = loss_fn(yhat,y)
    # 3
    loss.backward()
    # 4
    optimizr.step()
    optimizr.zero_grad()
torch.concat([yhat,y],axis=1)[::4]
tensor([[4.1083, 4.0200],
        [0.9388, 1.1200],
        [4.0483, 3.9900],
        [0.9707, 0.9600],
        [4.2264, 4.0500],
        [0.9518, 0.9900],
        [0.5124, 0.5600],
        [1.1198, 1.1200],
        [4.0588, 4.1600],
        [1.0596, 1.0500],
        [3.9666, 3.7800],
        [0.9472, 0.8800],
        [3.9194, 4.0400],
        [1.0346, 1.0300],
        [4.8851, 4.8500],
        [4.5387, 4.3900]], grad_fn=<SliceBackward0>)

- Nan값들을 추출하고 싶다면? 아래와 같이 진행

w = {'옥순(IN)':0, '영자(IN)':1, '정숙(IS)':2, '영숙(IS)':3, '순자(EN)':4, '현숙(EN)':5, '서연(ES)':6, '보람(ES)':7, '하니(I)':8}
m = {'영식(IN)':0, '영철(IN)':1, '영호(IS)':2, '광수(IS)':3, '상철(EN)':4, '영수(EN)':5, '규빈(ES)':6, '다호(ES)':7}
df_test = pd.DataFrame({'W':['옥순(IN)','보람(ES)','하니(I)'],'M':['영식(IN)','다호(ES)','영호(IS)']})
XX1 = torch.tensor(df_test['W'].map(w))
XX2 = torch.tensor(df_test['M'].map(m))

ebdd1 = torch.nn.Embedding(9,2)
b1 = torch.nn.Embedding(9,1)
ebdd2 = torch.nn.Embedding(8,2)
b2 = torch.nn.Embedding(8,1)

W_features = ebdd1(XX1)
W_bias = b1(XX1)
M_features = ebdd2(XX2)
M_bias = b2(XX2)
score = (W_features * M_features).sum(axis=1).reshape(-1,1) + W_bias + M_bias
yhat = sig(score) * 5
yhat
tensor([[1.8270],
        [2.6058],
        [4.5784]], grad_fn=<MulBackward0>)

3. 사용자 정의 네트워크

A. 사용자 정의 네트워크 사용법

- 예비학습1 : net(x)와 net.forward(x)는 사실 같다.

net = torch.nn.Sequential(
    torch.nn.Linear(1,1),
    torch.nn.Sigmoid()
)
X = torch.randn(5,1)
X
tensor([[-1.2804],
        [-0.0382],
        [-0.8600],
        [-1.3291],
        [ 0.0696]])
net(X)
tensor([[0.1890],
        [0.3183],
        [0.2277],
        [0.1849],
        [0.3315]], grad_fn=<SigmoidBackward0>)
net.forward(X)
tensor([[0.1890],
        [0.3183],
        [0.2277],
        [0.1849],
        [0.3315]], grad_fn=<SigmoidBackward0>)
net.forward = lambda x : '메롱'
net.forward(X)
'메롱'
net(X)
'메롱'

- 예비학습2 : torch.nn.Module을 상속받아서 네트워크를 만들면 (= class XXX(torch.nn.Module): 과 같은 방식으로 클래스를 선언하면) 약속된 아키텍처를 가진 네트워크를 찍어내는 함수를 만들 수 있다.

예시1)

class Mynet1(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.l1 = torch.nn.Linear(1,1)
        self.a1 = torch.nn.Sigmoid()
        self.l2 = torch.nn.Linear(1,1)
    def forward(self,x):
        yhat = self.l2(self.al(self.l1(x)))
        return yhat

net을 내가 만든 네트워크로 받아주기

net = Mynet1()

예시2)

class Mynet2(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.l1 = torch.nn.Linear(in_features=1,out_features=1,bias=True)
        self.a1 = torch.nn.ReLU()
        self.l2 = torch.nn.Linear(in_features=1,out_features=1,bias=False)
    def forward(self,x):
        yhat = self.l2(self.a1(self.l1(x)))
        return yhat
net = Mynet2()

실습)

torch.manual_seed(43052)
x,_ = torch.randn(100).sort()
x = x.reshape(-1,1)
ϵ = torch.randn(100).reshape(-1,1)*0.5
y = 2.5+ 4*x + ϵ
plt.plot(x,y,'o')

class Net(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.l1 = torch.nn.Linear(1,1)
    def forward(self,x):
        yhat = self.l1(x)
        return yhat

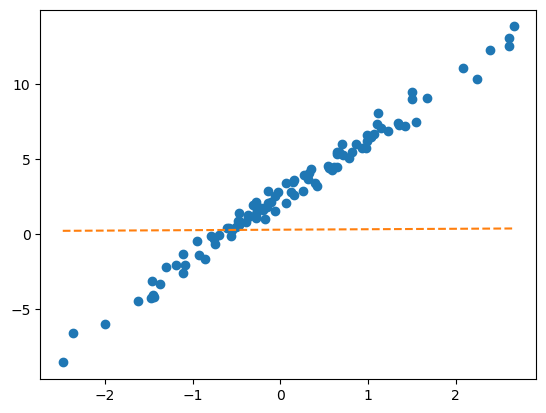

plt.plot(x,y,'o')
plt.plot(x,net(x).data,'--') # 최초의 직선

net = Net()
loss_fn = torch.nn.MSELoss()
optimizr = torch.optim.Adam(net.parameters(),lr=0.1)

for epoc in range(100):
    yhat = net(x)
    loss = loss_fn(yhat,y)
    loss.backward()
    optimizr.step()
    optimizr.zero_grad()

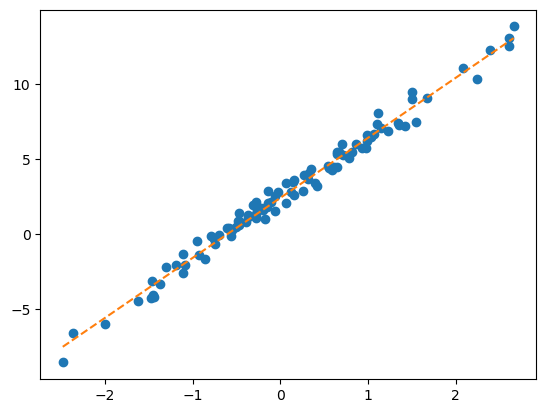

plt.plot(x,y,'o')
plt.plot(x,net(x).data,'--') # 최초의 직선

B. MF-based 추천시스템 재설계

df_view = pd.read_csv('https://raw.githubusercontent.com/guebin/DL2024/main/posts/solo.csv',index_col=0)
df_view
영식(IN) 영철(IN) 영호(IS) 광수(IS) 상철(EN) 영수(EN) 규빈(ES) 다호(ES)
옥순(IN) NaN 4.02 3.45 3.42 0.84 1.12 0.43 0.49
영자(IN) 3.93 3.99 3.63 3.43 0.98 0.96 0.52 NaN
정숙(IS) 3.52 3.42 4.05 4.06 0.39 NaN 0.93 0.99
영숙(IS) 3.43 3.57 NaN 3.95 0.56 0.52 0.89 0.89
순자(EN) 1.12 NaN 0.59 0.43 4.01 4.16 3.52 3.38
현숙(EN) 0.94 1.05 0.32 0.45 4.02 3.78 NaN 3.54
서연(ES) 0.51 0.56 0.88 0.89 3.50 3.64 4.04 4.10
보람(ES) 0.48 0.51 1.03 NaN 3.52 4.00 3.82 NaN
하니(I) 4.85 4.82 NaN 4.98 4.53 4.39 4.45 4.52
df_train = df_view.stack().reset_index().set_axis(['W','M','y'],axis=1)
w = {'옥순(IN)':0, '영자(IN)':1, '정숙(IS)':2, '영숙(IS)':3, '순자(EN)':4, '현숙(EN)':5, '서연(ES)':6, '보람(ES)':7, '하니(I)':8}
m = {'영식(IN)':0, '영철(IN)':1, '영호(IS)':2, '광수(IS)':3, '상철(EN)':4, '영수(EN)':5, '규빈(ES)':6, '다호(ES)':7}
X1 = torch.tensor(df_train['W'].map(w)) # length-n int vector
X2 = torch.tensor(df_train['M'].map(m)) # length-n int vector
y = torch.tensor(df_train['y']).float().reshape(-1,1) # (n,1) float vector

사용자 정의 네트워크를 이용하여 MF-based 추천시스템을 설계하라

- 풀이1

class Net(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.ebdd1 = torch.nn.Embedding(9,2)
        self.ebdd2 = torch.nn.Embedding(8,2)
        self.b1 = torch.nn.Embedding(9,1)
        self.b2 = torch.nn.Embedding(8,1)
        self.sig = torch.nn.Sigmoid()
    def forward(self,X1,X2):
        W_features = self.ebdd1(X1)
        M_features = self.ebdd2(X2)
        W_bias = self.b1(X1)
        M_bias = self.b2(X2)
        score = (W_features * M_features).sum(axis=1).reshape(-1,1) + W_bias + M_bias
        yhat = sig(score) * 5
        return yhat
net = Net()
loss_fn = torch.nn.MSELoss()
optimizr = torch.optim.Adam(net.parameters(),lr=0.1)

for epoc in range(100):
    yhat = net(X1,X2)

    loss = loss_fn(yhat,y)

    loss.backward()

    optimizr.step()
    optimizr.zero_grad()
torch.concat([yhat.data , y],axis=1)[::5]
tensor([[4.0761, 4.0200],
        [0.5779, 0.4300],
        [3.5008, 3.4300],
        [3.4501, 3.4200],
        [0.9958, 0.9900],
        [0.7196, 0.5200],
        [0.4822, 0.4300],
        [0.8808, 0.9400],
        [3.9193, 3.7800],
        [0.8878, 0.8900],
        [0.5020, 0.4800],
        [4.0130, 3.8200],
        [4.7589, 4.3900]])

- 풀이2

X = torch.stack([X1,X2],axis=1)
X[:5]
tensor([[0, 1],
        [0, 2],
        [0, 3],
        [0, 4],
        [0, 5]])
X[:,0], X[:,1]
(tensor([0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3,
         3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6,
         6, 6, 7, 7, 7, 7, 7, 7, 8, 8, 8, 8, 8, 8, 8]),
 tensor([1, 2, 3, 4, 5, 6, 7, 0, 1, 2, 3, 4, 5, 6, 0, 1, 2, 3, 4, 6, 7, 0, 1, 3,
         4, 5, 6, 7, 0, 2, 3, 4, 5, 6, 7, 0, 1, 2, 3, 4, 5, 7, 0, 1, 2, 3, 4, 5,
         6, 7, 0, 1, 2, 4, 5, 6, 0, 1, 3, 4, 5, 6, 7]))
class Net(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.ebdd1 = torch.nn.Embedding(9,2)
        self.ebdd2 = torch.nn.Embedding(8,2)
        self.b1 = torch.nn.Embedding(9,1)
        self.b2 = torch.nn.Embedding(8,1)
        self.sig = torch.nn.Sigmoid()
    def forward(self,X):
        X1,X2 = X[:,0],X[:,1]
        W_features = self.ebdd1(X1)
        M_features = self.ebdd2(X2)
        W_bias = self.b1(X1)
        M_bias = self.b2(X2)
        score = (W_features * M_features).sum(axis=1).reshape(-1,1) + W_bias + M_bias
        yhat = sig(score) * 5
        return yhat
net = Net()
loss_fn = torch.nn.MSELoss()
optimizr = torch.optim.Adam(net.parameters(),lr=0.1) # 이게 편해요!!
#--#
for epoc in range(100):
    # 1
    yhat = net(X)
    # 2
    loss = loss_fn(yhat,y)
    # 3
    loss.backward()
    # 4
    optimizr.step()
    optimizr.zero_grad()
torch.concat([yhat.data,y],axis=1)[::5]
tensor([[4.0690, 4.0200],
        [0.6189, 0.4300],
        [3.5540, 3.4300],
        [3.4387, 3.4200],
        [0.9671, 0.9900],
        [0.6642, 0.5200],
        [0.5653, 0.4300],
        [0.0233, 0.9400],
        [3.8030, 3.7800],
        [0.7846, 0.8900],
        [0.5607, 0.4800],
        [3.8352, 3.8200],
        [4.9609, 4.3900]])

4.NN-based 추천시스템

A. NN-based 방식

df_view = pd.read_csv('https://raw.githubusercontent.com/guebin/DL2024/main/posts/solo.csv',index_col=0)
df_view
영식(IN) 영철(IN) 영호(IS) 광수(IS) 상철(EN) 영수(EN) 규빈(ES) 다호(ES)
옥순(IN) NaN 4.02 3.45 3.42 0.84 1.12 0.43 0.49
영자(IN) 3.93 3.99 3.63 3.43 0.98 0.96 0.52 NaN
정숙(IS) 3.52 3.42 4.05 4.06 0.39 NaN 0.93 0.99
영숙(IS) 3.43 3.57 NaN 3.95 0.56 0.52 0.89 0.89
순자(EN) 1.12 NaN 0.59 0.43 4.01 4.16 3.52 3.38
현숙(EN) 0.94 1.05 0.32 0.45 4.02 3.78 NaN 3.54
서연(ES) 0.51 0.56 0.88 0.89 3.50 3.64 4.04 4.10
보람(ES) 0.48 0.51 1.03 NaN 3.52 4.00 3.82 NaN
하니(I) 4.85 4.82 NaN 4.98 4.53 4.39 4.45 4.52
df_train = df_view.stack().reset_index().set_axis(['W','M','y'],axis=1)
w = {'옥순(IN)':0, '영자(IN)':1, '정숙(IS)':2, '영숙(IS)':3, '순자(EN)':4, '현숙(EN)':5, '서연(ES)':6, '보람(ES)':7, '하니(I)':8}
m = {'영식(IN)':0, '영철(IN)':1, '영호(IS)':2, '광수(IS)':3, '상철(EN)':4, '영수(EN)':5, '규빈(ES)':6, '다호(ES)':7}
X1 = torch.tensor(df_train['W'].map(w)) # length-n int vector
X2 = torch.tensor(df_train['M'].map(m)) # length-n int vector
y = torch.tensor(df_train['y']).float().reshape(-1,1) # (n,1) float vector

NN-based 추천시스템을 설계하라

(풀이1) - 실패

- W_feature,M_feature,W_bias,M_bias을 모두 concat해서 (nx6)행렬로 만든 후에 linear를 태워볼까?

class Net(torch.nn.Module):
    def __init__(self):
        super().__init__()
        #--#
        self.ebdd1 = torch.nn.Embedding(9,2)
        self.ebdd2 = torch.nn.Embedding(8,2)
        self.b1 = torch.nn.Embedding(9,1)
        self.b2 = torch.nn.Embedding(8,1)
        self.mlp = torch.nn.Sequential(
            torch.nn.Linear(6,1),
            torch.nn.Sigmoid()
        )
    def forward(self,X1,X2):
        W_feature = self.ebdd1(X1)
        M_feature = self.ebdd2(X2)
        W_bias = self.b1(X1)
        M_bias = self.b2(X2)
        Z = torch.concat([W_feature,M_feature,W_bias,M_bias],axis=1)
        yhat = self.mlp(Z) * 5
        return yhat
net = Net()
loss_fn = torch.nn.MSELoss()
optimizr = torch.optim.Adam(net.parameters(),lr=0.1) # 이게 편해요!!
#--#
for epoc in range(1000):
    # 1
    yhat = net(X1,X2)
    # 2
    loss = loss_fn(yhat,y)
    # 3
    loss.backward()
    # 4
    optimizr.step()
    optimizr.zero_grad()
torch.concat([yhat.data,y],axis=1)[::5]
tensor([[2.1565, 4.0200],
        [1.6908, 0.4300],
        [2.6466, 3.4300],
        [2.7758, 3.4200],
        [2.5814, 0.9900],
        [2.3105, 0.5200],
        [2.6402, 0.4300],
        [1.7231, 0.9400],
        [2.3893, 3.7800],
        [2.4106, 0.8900],
        [1.9774, 0.4800],
        [2.0164, 3.8200],
        [4.7447, 4.3900]])
  • 안 맞네..?

(풀이2) - 모르겠다… 깊은 신경망 써보자

class Net(torch.nn.Module):
    def __init__(self):
        super().__init__()
        #--#
        self.ebdd1 = torch.nn.Embedding(9,2)
        self.ebdd2 = torch.nn.Embedding(8,2)
        self.b1 = torch.nn.Embedding(9,1)
        self.b2 = torch.nn.Embedding(8,1)
        self.mlp = torch.nn.Sequential(
            torch.nn.Linear(6,15),
            torch.nn.ReLU(),
            torch.nn.Linear(15,15),
            torch.nn.ReLU(),
            torch.nn.Linear(15,1),
            torch.nn.Sigmoid()
        )
    def forward(self,X1,X2):
        W_feature = self.ebdd1(X1)
        M_feature = self.ebdd2(X2)
        W_bias = self.b1(X1)
        M_bias = self.b2(X2)
        Z = torch.concat([W_feature,M_feature,W_bias,M_bias],axis=1)
        yhat = self.mlp(Z) * 5
        return yhat
torch.manual_seed(43052)
net = Net()
loss_fn = torch.nn.MSELoss()
optimizr = torch.optim.Adam(net.parameters(),lr=0.1) # 이게 편해요!!
#--#
for epoc in range(1000):
    # 1
    yhat = net(X1,X2)
    # 2
    loss = loss_fn(yhat,y)
    # 3
    loss.backward()
    # 4
    optimizr.step()
    optimizr.zero_grad()
torch.concat([yhat.data,y],axis=1)[::5]
tensor([[4.0304, 4.0200],
        [0.4593, 0.4300],
        [3.4378, 3.4300],
        [3.4342, 3.4200],
        [1.0066, 0.9900],
        [0.5503, 0.5200],
        [0.4410, 0.4300],
        [0.9358, 0.9400],
        [3.8641, 3.7800],
        [0.9078, 0.8900],
        [0.4841, 0.4800],
        [3.8569, 3.8200],
        [4.4065, 4.3900]])

- 잘 맞추는데 오버피팅 아니야?

df_view
영식(IN) 영철(IN) 영호(IS) 광수(IS) 상철(EN) 영수(EN) 규빈(ES) 다호(ES)
옥순(IN) NaN 4.02 3.45 3.42 0.84 1.12 0.43 0.49
영자(IN) 3.93 3.99 3.63 3.43 0.98 0.96 0.52 NaN
정숙(IS) 3.52 3.42 4.05 4.06 0.39 NaN 0.93 0.99
영숙(IS) 3.43 3.57 NaN 3.95 0.56 0.52 0.89 0.89
순자(EN) 1.12 NaN 0.59 0.43 4.01 4.16 3.52 3.38
현숙(EN) 0.94 1.05 0.32 0.45 4.02 3.78 NaN 3.54
서연(ES) 0.51 0.56 0.88 0.89 3.50 3.64 4.04 4.10
보람(ES) 0.48 0.51 1.03 NaN 3.52 4.00 3.82 NaN
하니(I) 4.85 4.82 NaN 4.98 4.53 4.39 4.45 4.52
XX1 = torch.tensor([0,1,8])
XX2 = torch.tensor([1,7,2])
net(XX1,XX2)
tensor([[4.0098],
        [0.5043],
        [4.9727]], grad_fn=<MulBackward0>)
